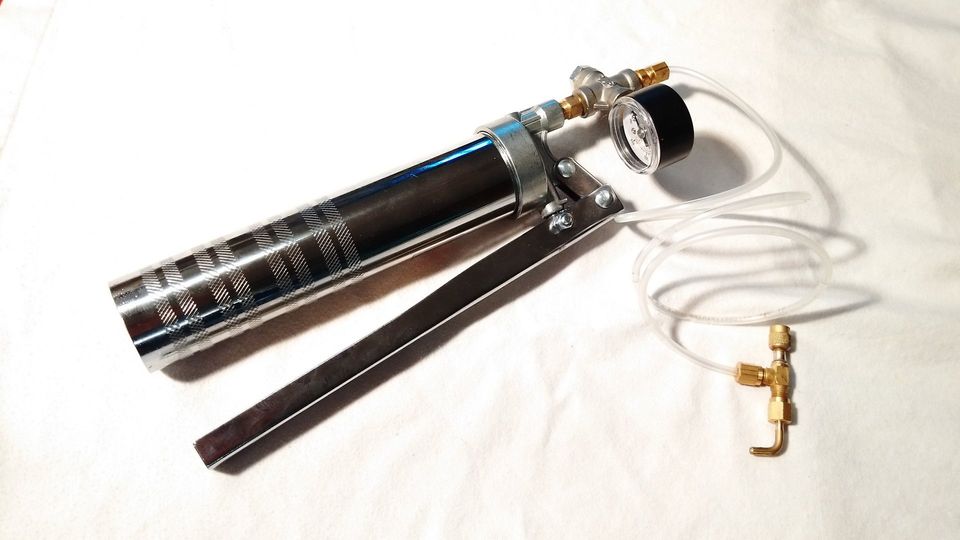

This unit consists of a hand operated pump, similar in function to a grease gun, but has special

rubber seals to operate with hydrolastic fluids. The pump is self-contained and is operated upright with the fluid chamber at the top allowing easy monitoring of the fluid level and ease of top up.

The hose is fitted with a low-loss Schrader type adaptor which is constructed so the car refilling

valve can be mechanically opened by use of the operating lever. This operates within the sealed

hydraulic system thus avoiding loss of fluid during operation of the car suspension valve. The low-loss connector can therefore be used to open the car valve and thus the pumps integral pressure gauge will indicate true system pressure.

The integral gauge can be used to monitor the peak pumping pressure and to indicate fluid pressure is being generated during pumping strokes.

Note:- the low-loss connector operating lever must NOT be set to open the car valve when fluid is being pumped.

Features.

200cc fluid capacity

Individually tested to 450 psi (30 bar) on our Hydrolastic/Hydragas suspension test rig.

1m of high pressure resistant nylon hose

Low-loss Schrader valve connector with operating lever

Small size to suit the tool box

Supplied with our instruction sheet for usage

Each of the pumps and compressor tools are despatched in purpose made postal tubes to ensure safe delivery, and the tubes also provide a handly workshop storage container to keep the equipment clean and prevent damage.
